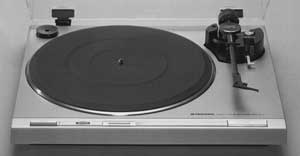

Pioneer PL-4

Two-speed direct-drive turntable with hall-type motor and straight pipe tonearm

Description

The PL-4 is an auto-return turntable. All its essential controls - speed, pitch control (with strobe), record size and cut - are grouped on the slanted front edge.

Placing a record on the platter and moving the tonearm over to it is all that is necessary to enjoy record play.

There's no need to physically touch the tonearm at any time; the arm automatically returns to its rest when play is over.

Even arm cueing is provided by an arm elevation device located at the base of the arm

Specifications

Type: direct drive

Motor: coreless DC servo, stable hanging rotor, hall motor

Speeds: 33 and 45rpm

Wow and flutter: 0.025%

Rumble: 78dB

Tonearm: static-balanced low mas polymer graphite straight pipe arm

Effective length: 221mm

Overhang: 15.5mm

Cartridge weight range: 3 to 8g

Dimensions: 420 x 108 x 367mm

Weight: 5.8kg
