PL-41

Vintage-Винтажная Техника > Pioneer

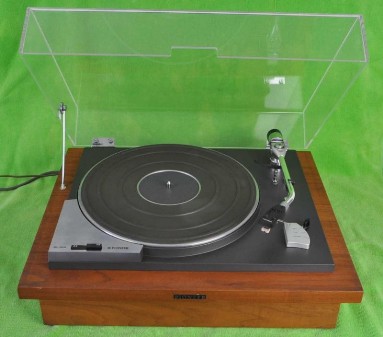

Pioneer PL-41

Professional Belt Drive Stereo Turntable

The Pioneer PL-41 is a two speed model, 33 1/3 and 45rpm.

Two push-buttons provided on the belt cover control selection of speeds.

Pressing the desired speed push-button will automatically set the turntable for operation of the speed marked on the push-button.

The PL-41 is a belt drive system in which the motor drives the turntable platter through a belt.

Therefore, changing turntable speeds must be done only when the turntable platter is rotating.


Pioneer PL-41A

Professional Belt Drive Stereo Turntable

Description

The Pioneer PL-41A is a 2-speed, belt-drive turntable featuring a 4-pole synchronous motor driving a 31cm aluminium alloy diecast platter.

The static-balance type tonearm has lateral balance and anti-skate adjustment, and is fitted with a PC-35 induced magnet type cartridge.

Pioneer PL-41C

Professional Belt Drive Stereo Turntable

The PL-41C was the designation given to the PL-41A turntable that was sold without the pre-fitted PC-35 induced magnet cartridge.





The Pioneer PL-41
Specifications
Type: belt drive

Motor: 4-pole hysteresis synchronous

Speeds: 33 and 45rpm

Wow and flutter: 0.08%

Rumble: 50dB

Platter: 310mm, 2.2kg, aluminium alloy diecast

Tonearm: static balance type

Cartridge: PC-35 induced magnet type

Stylus: PN-35 0.5 mil radius diamond

Frequency response: 10 to 25,000Hz

Channel separation: more than 25dB

Output: 3.5mV

Stylus pressure: 2 to 3g

Dimensions: 500 x 195 x 405mm

Weight: 10.5kg








Pioneer PL-41A
Specifications

Type: belt drive

Motor: 4-pole hysteresis synchronous

Speeds: 33 and 45rpm

Wow and flutter: 0.08%

Rumble: 50dB

Platter: 310mm, 2.2kg, aluminium alloy diecast

Tonearm: static balance type

Cartridge: PC-35 induced magnet type

Stylus: PN-35 0.5 mil radius diamond

Frequency response: 10 to 25,000Hz

Channel separation: more than 25dB

Output: 3.5mV

Stylus pressure: 2 to 3g

Dimensions: 500 x 195 x 405mm


Pioneer PL-41C
Specifications

Type: belt drive

Motor: 4-pole hysteresis synchronous

Speeds: 33 and 45rpm

Wow and flutter: 0.08%

Rumble: 50dB

Platter: 310mm, 2.2kg, aluminium alloy diecast

Tonearm: static balance type

Dimensions: 500 x 195 x 405mm
