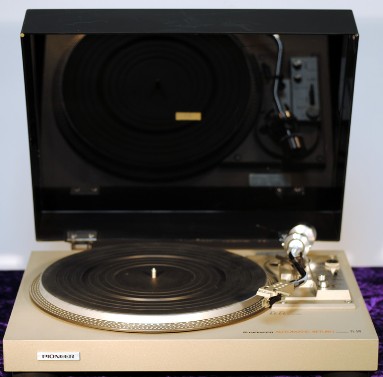

Pioneer PL-516

Two Speed Belt Drive Turntable

Description

The Pioneer PL-516 is a 2-speed, belt-driven turntable with auto-return mechanism.

Other features include an anti-skating control, cueing device, fine speed adjuster, strobe light, insulator feet, plug-in type headshell and a 40mm thick particle board cabinet.


Specifications

Type: auto-return turntable

Drive method: belt drive

Motor: FG servo DC motor

Speeds: 33 and 45rpm

Pitch control: +-2%

Wow and flutter: 0.045% WRMS

Signal to noise ratio: 68dB

Platter: 320mm aluminium alloy die-cast

Tonearm: static balance type, pipe arm (s-shaped)

Effective length: 221mm

Overhang: 15.5mm

Usable cartridge weight: 4 to 10g

Dimensions: 440 x 365 x 140mm

Weight: 7.2kg
